- Realforce TKL / R2TL-US5-BK
Realforce TKL / R2TL-US5-BK Discontinued
Capacitive KeyUS55gSoftwareFull N-Key
![Main Photo](images/mainphoto.jpg)
![Space-saving design is realized by eliminating number keys](images/Tenkeyless-future_1.jpg)
Space-saving design is realized by eliminating number keys
For those with limited desk space, the space-saving design is recommended. The keyboard width is 8.6cm less than ordinary keyboards. By saving 20% of the keyboard space, a larger space for using the mouse becomes available.
![Key operation is the same as ordinary keyboards](images/Tenkeyless-future_2.jpg)
Key operation is the same as ordinary keyboards
By allocating number keys to other keys, keying in numbers or working on calculations are just as easy as on an ordinary keyboard.
![Color changeable LED indicator](images/img_led.jpg)
Color changeable LED indicator
The color of LED lights for indicating the status of CapsLock, NumLock and so on can be changed by selecting from 7 colors and customized by the keyboard. The brightness of LED indicators is also adjustable.

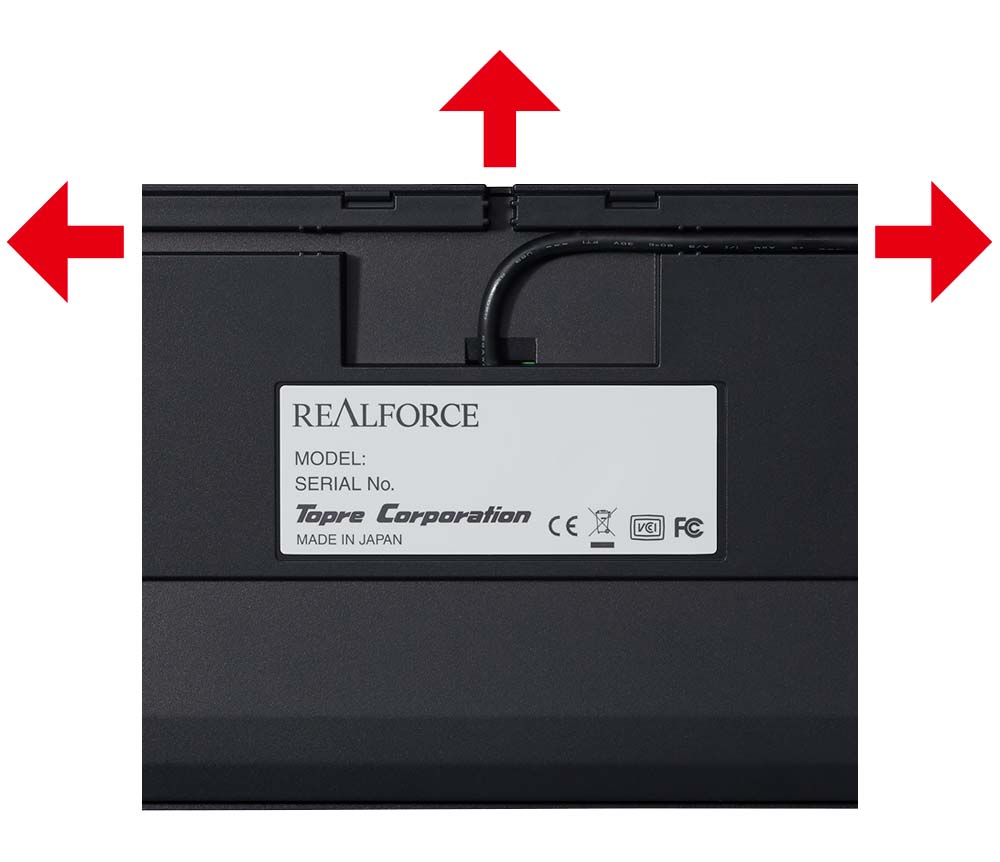

![Cable Slit](images/img_cable-slit.jpg)
Cable can be extended in 3 directions
The cable outlets are placed on the left, right and upper side of the keyboard. Cable outlets in 3 directions allows for optimal placement according to the installation environment.
![Tilt Stand](images/img_tilt-stand.jpg)
More traction and more stability
By increasing the surface area of the bottom rubber pads fourfold, and by adopting a soft resin material on the bottom of the tilt stand, the keyboard is more stable and less likely to accidentally be displaced on glossy surfaces such as glass.

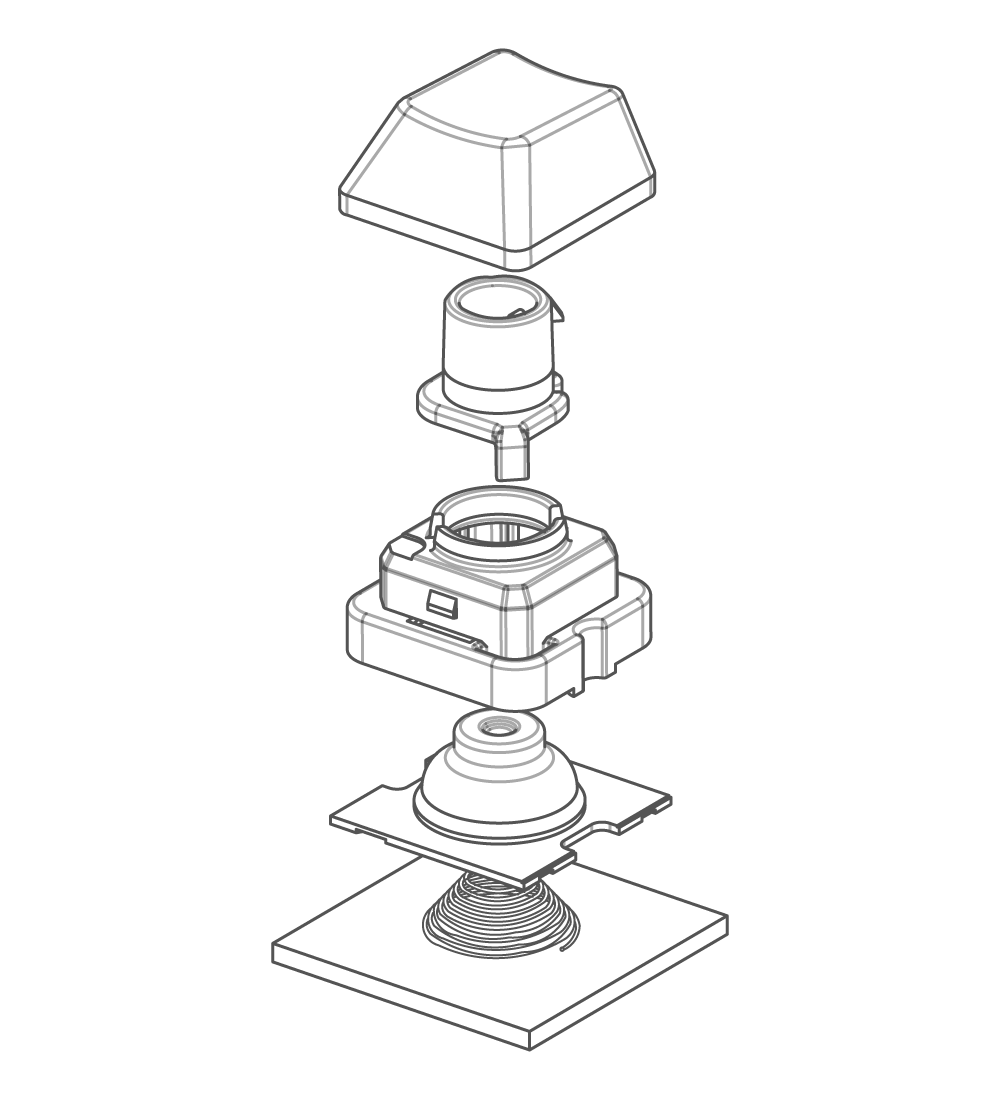

![Topre Capacitive Key Switch](images/img_keyswitch.png)
Topre Capacitive Key Switch
Superior key touch feel.
No chattering.
No contact mechanism.
Made in Japan.

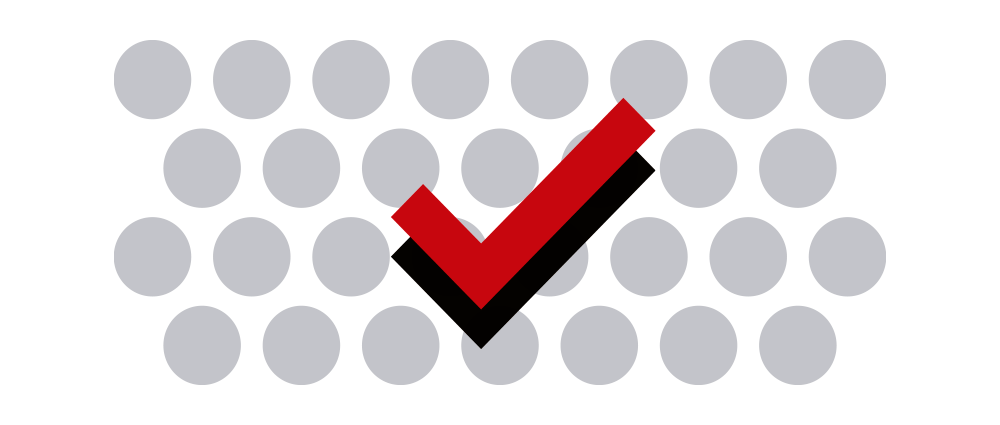

![Full N-key Roll Over](images/img_fullnkey.png)
Full N-key Roll Over
No matter how fast you are, you’ll never miss. The Realforce can keep up with any number of keystrokes and ensure you’re always in control.

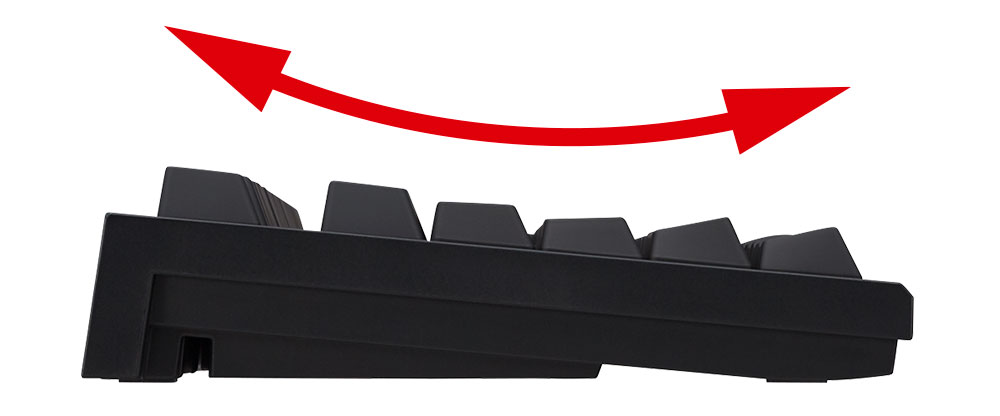

![Step Sculpture](images/img_stepsculpture.jpg)
Ergonomic Form Factor
The step sculpture design allows for smooth movement across keys and comfortable typing over long play time.

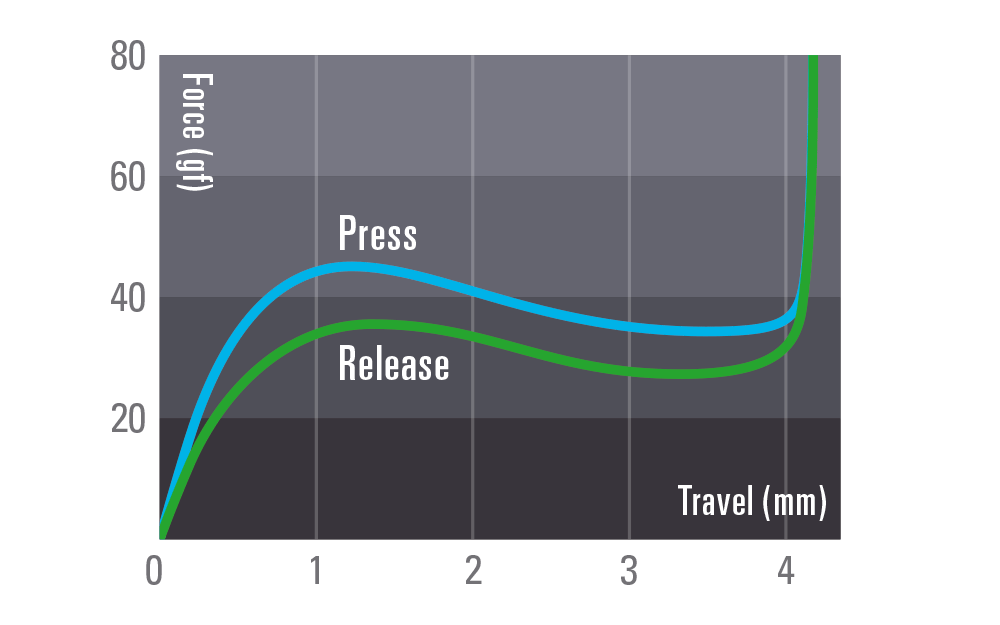

![Force Diagram](images/img_forcediagram.png)
Force Diagram
45g Silky-Smooth keystroke.

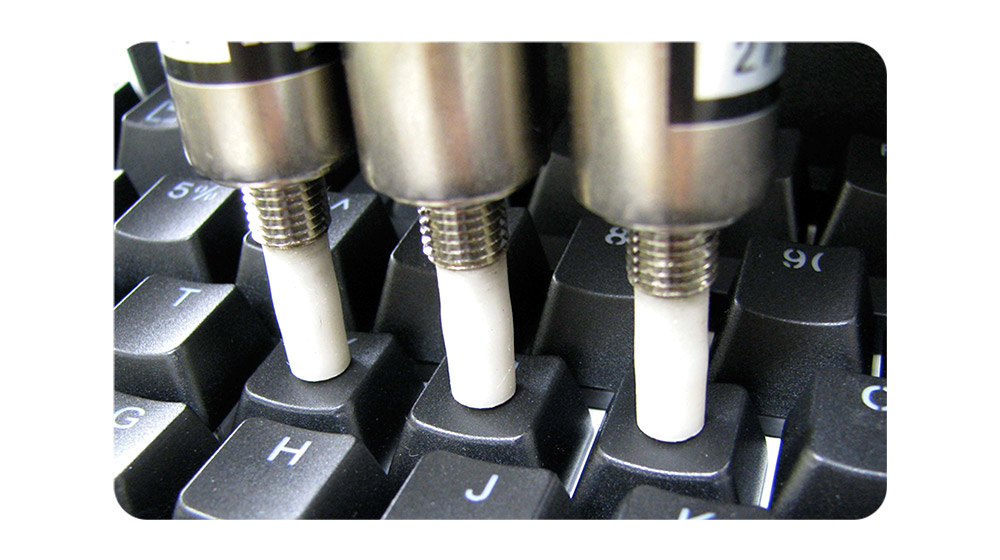

![Key Life Time](images/img_keylifetime.jpg)
Key Life Time
Each Topre key switch is tested to clear 50 million keystrokes.
Made in Japan
Commitment to quality, durability, and technological sophistication.
Spec
Sublimation printing | |
Key Life Time | 50 million times |
Weight | 1.1Kg |
Dimensions | 142mm x 369mm x 39mm |
Layout | US layout 87 keys |
Cable Length | 1.7m / 5.6feet |
Key Weight | 55g Soft tactile feeling |
Key Travel | 4mm |
---|---|
Key Shapes | Step scultpture |
N-Key Rollover | Full N Key rollover |
Interface | USB |
Country of Origin | Made in Japan, Designed in Japan |
Contents | Keyboard, Warranty card |
