Realforce TKL A / R2TLA-USV-BK Discontinued
Capacitive KeyAPCUSVariable WgtSoftwareFull N-Key
Space-saving design is realized by eliminating number keys
For those with limited desk space, the space-saving design is recommended. The keyboard width is 8.6cm less than ordinary keyboards. By saving 20% of the keyboard space, a larger space for using the mouse becomes available.
Key operation is the same as ordinary keyboards
By allocating number keys to other keys, keying in numbers or working on calculations are just as easy as on an ordinary keyboard.

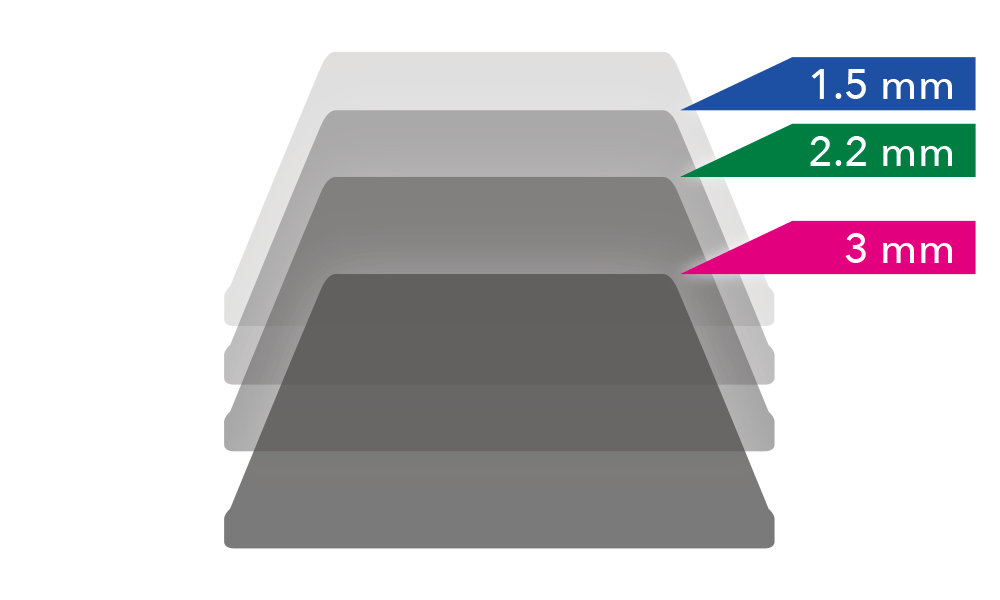

Actuation Point Changer (1.5 / 2.2 / 3mm)
Customize various points for detecting key activations, making it 25% faster than competing mechanical keyboards. Switch to lightning fast responsiveness for gaming or adjust it for accuracy in typing.

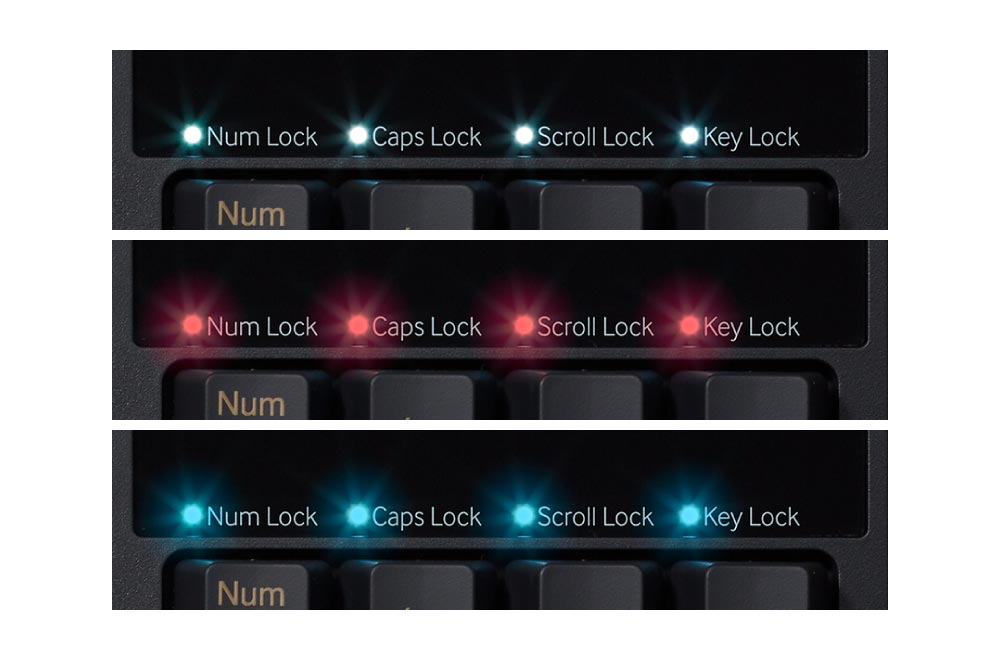

Color changeable LED indicator
The color of LED lights for indicating the status of CapsLock, NumLock and so on can be changed by selecting from 7 colors and customized by the keyboard. The brightness of LED indicators is also adjustable.
LED indicator color with APC function
By using the APC key, it is possible to adjust the actuation point by selecting from 3 levels. The level of actuation point can be confirmed by the color of LED indicator.
LED color: Blue
Actuation point: 1.5mm for all keys (Speedy input)
LED color: Green
Actuation point: 2.2mm for all keys (Normal input)
LED color: Red
Actuation point: 3.0mm for all keys (Mistaken input prevention)
LED color: White
Actuation point: Customized for each key (Speedy input & Mistaken input prevention)
* The white LED represents the actuation point of “each individual key” customized by the Realforce software.

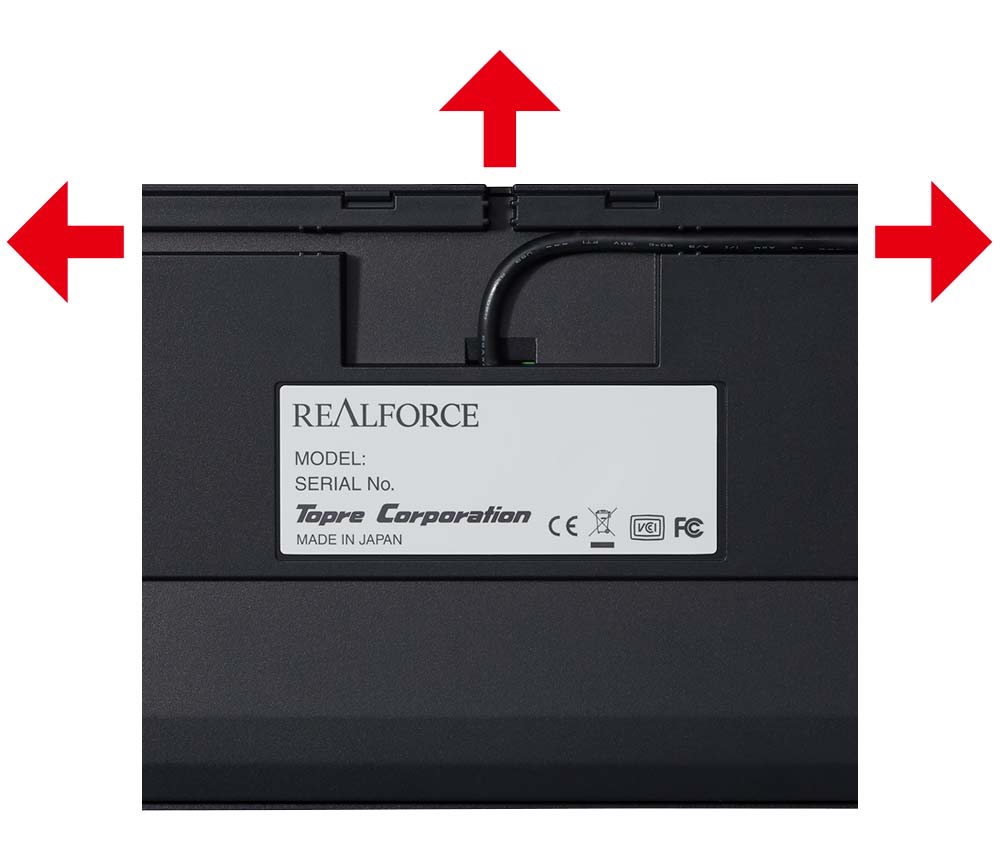

Cable can be extended in 3 directions
The cable outlets are placed on the left, right and upper side of the keyboard. Cable outlets in 3 directions allows for optimal placement according to the installation environment.
More traction and more stability

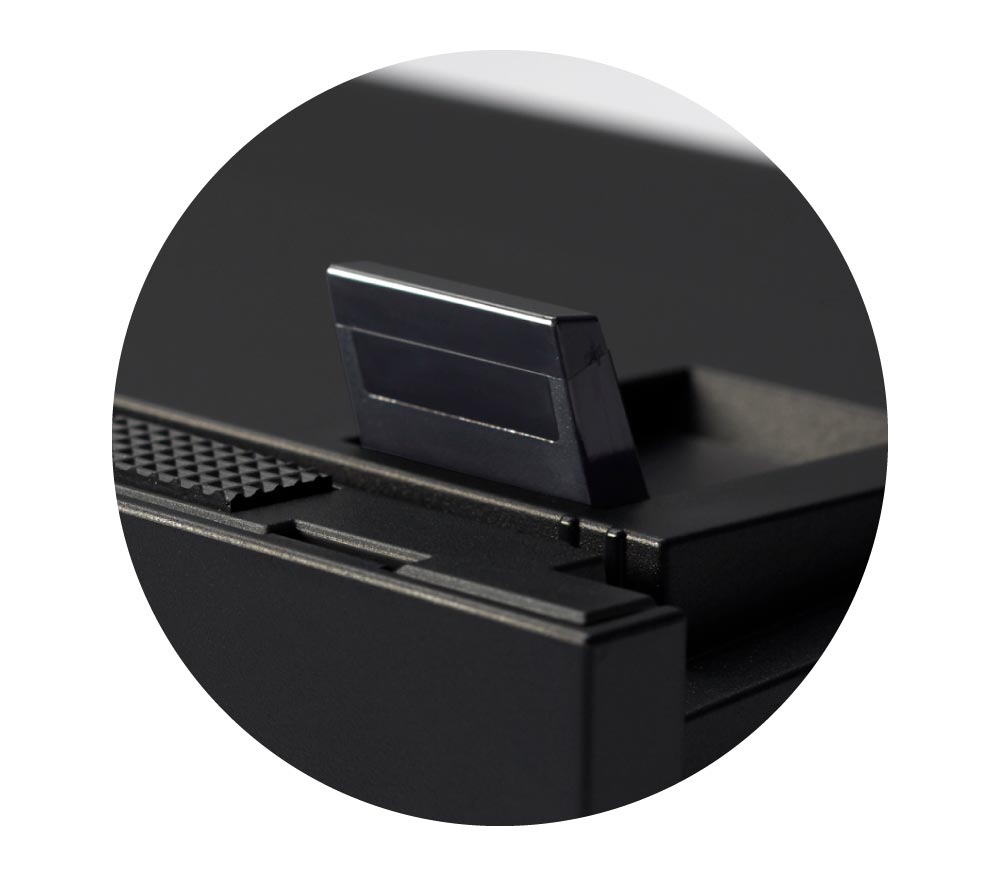

By increasing the surface area of the bottom rubber pads fourfold, and by adopting a soft resin material on the bottom of the tilt stand, the keyboard is more stable and less likely to accidentally be displaced on glossy surfaces such as glass.

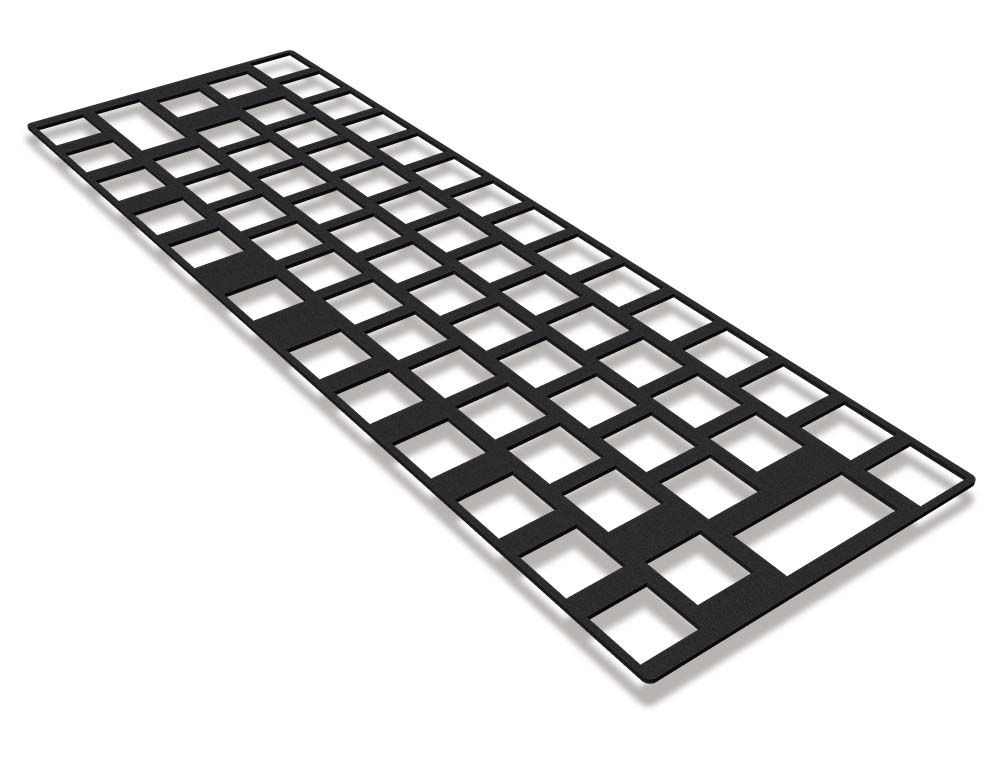

Adjustable by key spacer
Two types of integral key spacers with 2mm and 3mm thickness and a key top puller are attached. Installing the integral type key spacer under the key top according to the APC function setting provides for faster keystroke return, allowing for quicker key input.

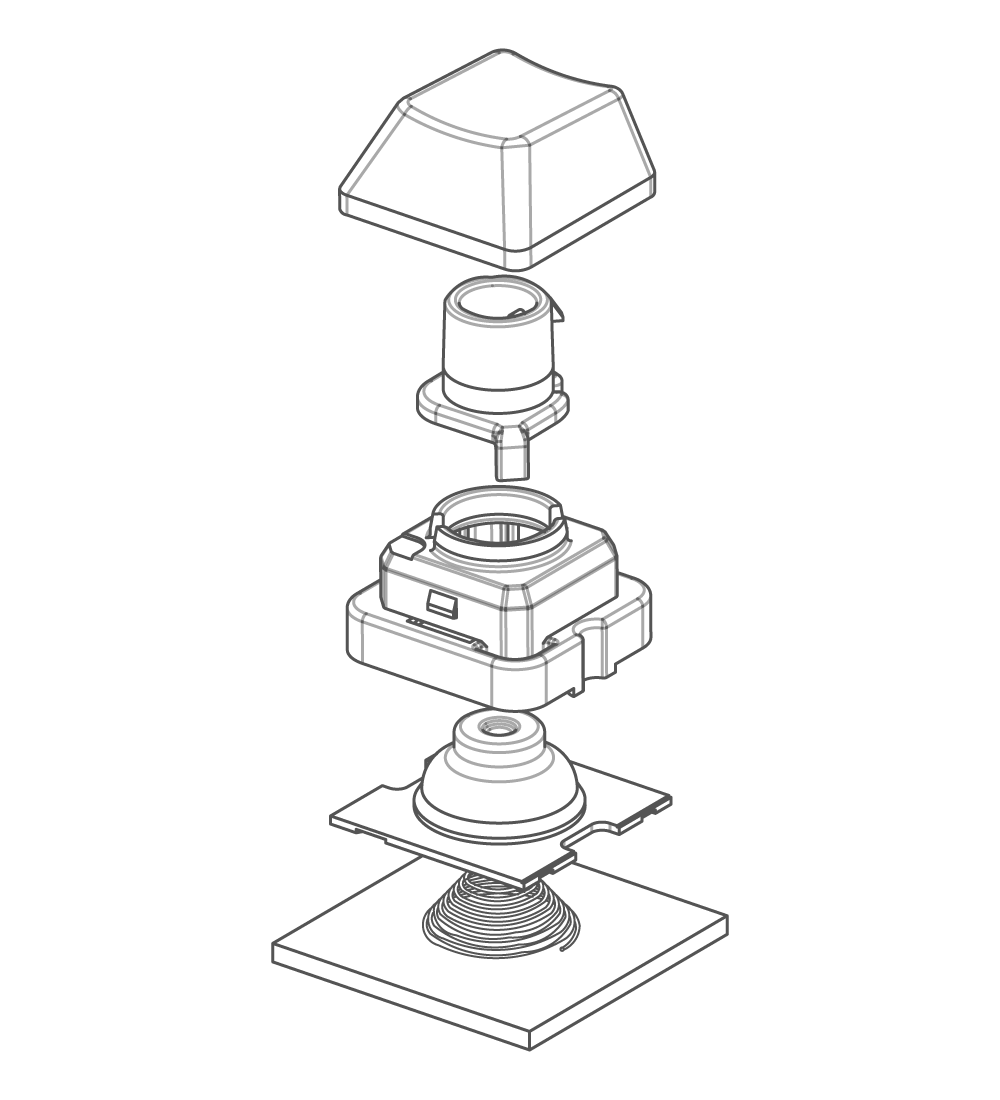

Topre Capacitive Key Switch
Superior key touch feel.
No chattering.
No contact mechanism.
Made in Japan.
Full N-key Roll Over
No matter how fast you are, you’ll never miss. The Realforce can keep up with any number of keystrokes and ensure you’re always in control.

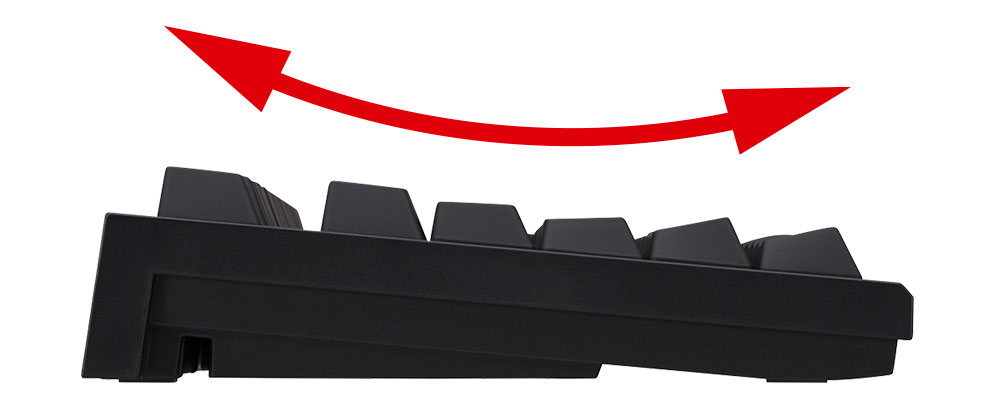

Ergonomic Form Factor
The step sculpture design allows for smooth movement across keys and comfortable typing over long play time.

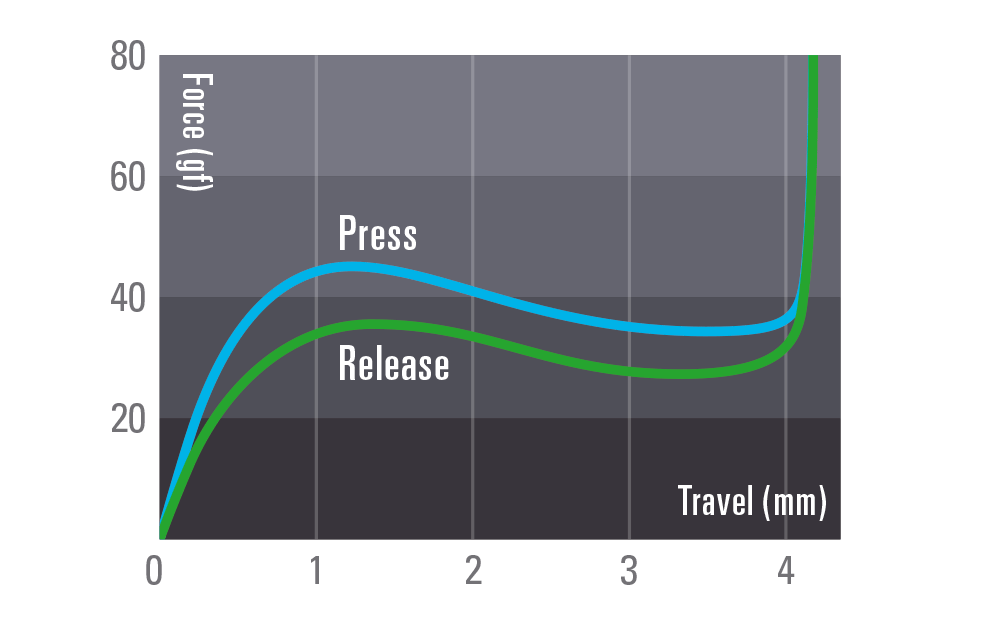

Force Diagram
45g Silky-Smooth keystroke.

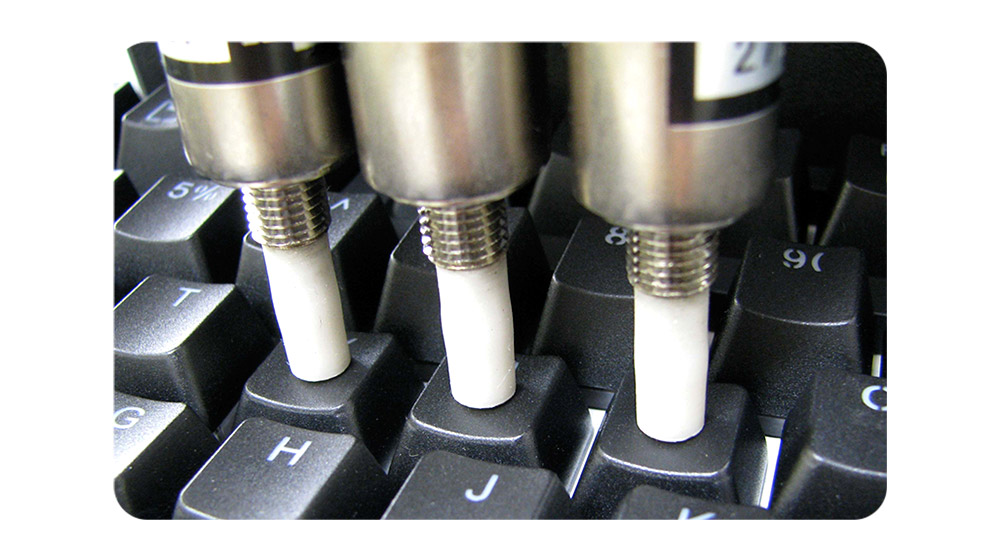

Key Life Time
Each Topre key switch is tested to clear 50 million keystrokes.
Made in Japan
Commitment to quality, durability, and technological sophistication.
Spec
| Sublimation printing | |
| Key Life Time | 50 million times |
| Weight | 1.1Kg |
| Dimensions | 142mm x 369mm x 39mm |
| Layout | US layout 87 keys |
| Cable Length | 1.7m / 5.6feet |
| Key Weight | 30g, 45g, 55g Soft tactile feeling |
| Key Travel | 4mm |
|---|---|
| Key Shapes | Step scultpture |
| N-Key Rollover | Full N Key rollover |
| Interface | USB |
| Country of Origin | Made in Japan, Designed in Japan |
| Contents | Keyboard, Warranty card, Key caps(Ctrl, Caps Lock), Key cap puller, Key Spacer(2mm/3mm) |
