Realforce RGB / AEAX01 Discontinued
Capacitive KeyRGBAPCUS45gSoftwareD-shot keycapsFull N-Key
![Main Photo](images/mainphoto.jpg)
![Actuation Point Changer](images/img_apc.png)

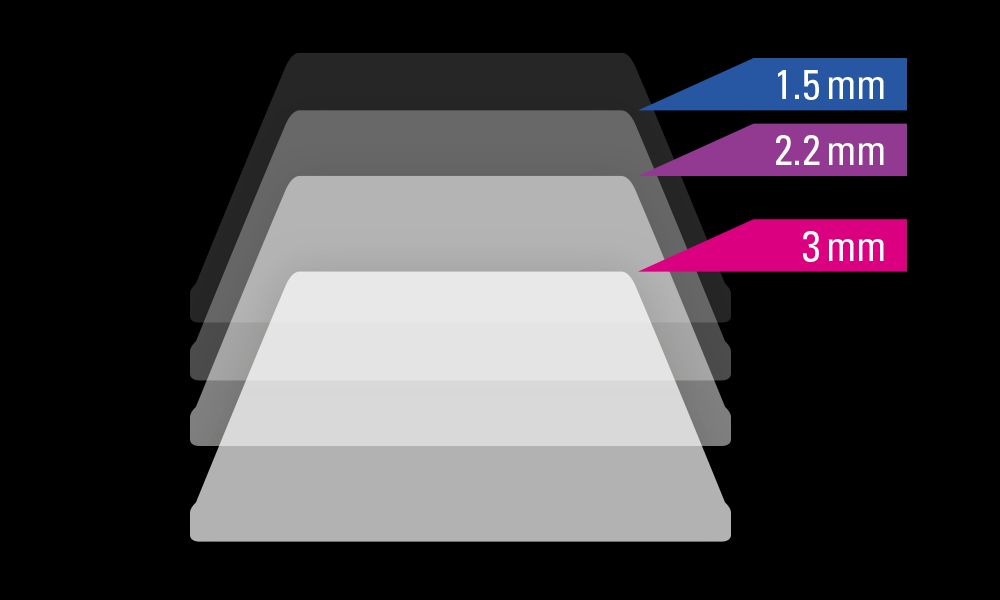

Actuation Point Changer (1.5 / 2.2 / 3mm)
Customize various points for detecting key activations, making it 25% faster than competing mechanical keyboards. Switch to lightning fast responsiveness for gaming or adjust it for accuracy in typing.
![Topre Capacitive Key Switch](images/img_keyswitch.png)

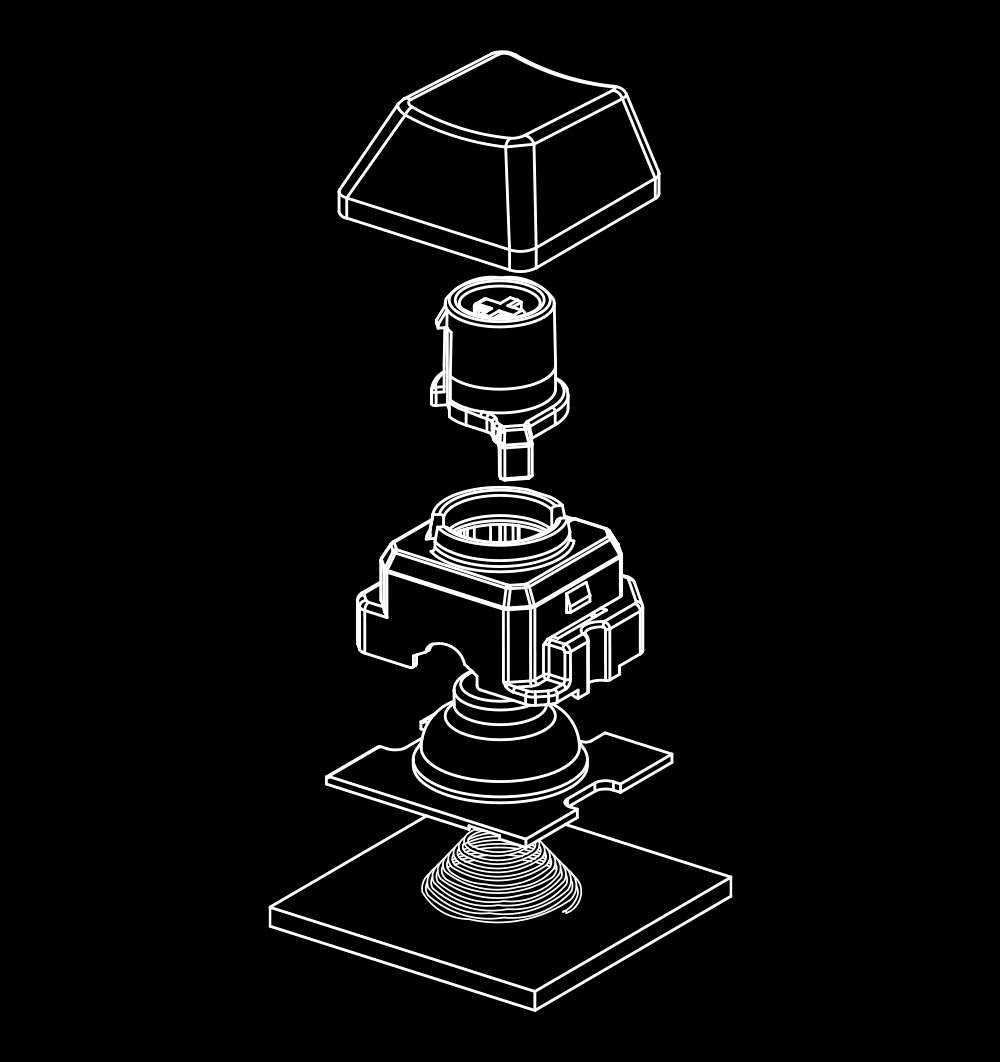

Topre Capacitive Key Switch
Superior key touch feel.
No chattering.
No contact mechanism.
Made in Japan.
![Software](images/img_software.jpg)

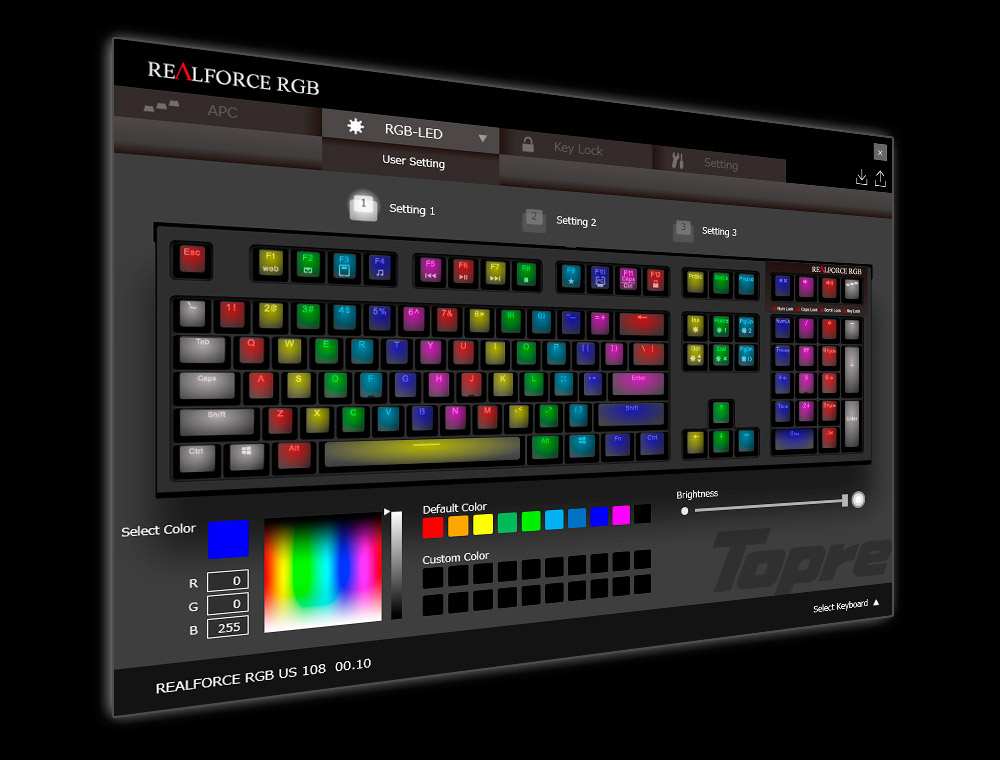

Software
Program your actuation points and backlit colors with ease. The software is available to download from the below link.
![Double Shot Keycaps](images/img_doubleshotkeycaps.jpg)

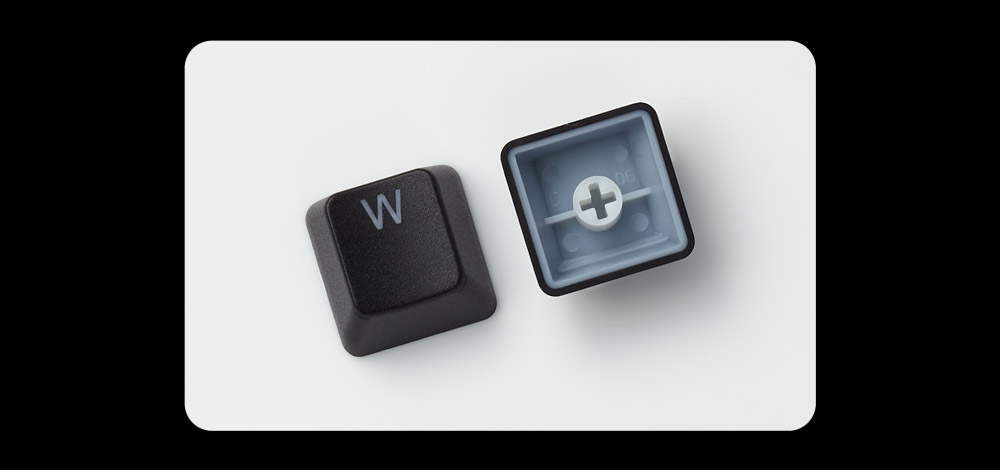

Double Shot Keycaps
Improved key texture and fade resistant.
![16.8M Backlit Color](images/img_168backlitcolor.jpg)
RGB Per-Key Backlighting
Customize your keyboard’s backlighting through the included software application with a spectrum of over 16.8 million colors.
![Key Spacer](images/img_spacer.jpg)

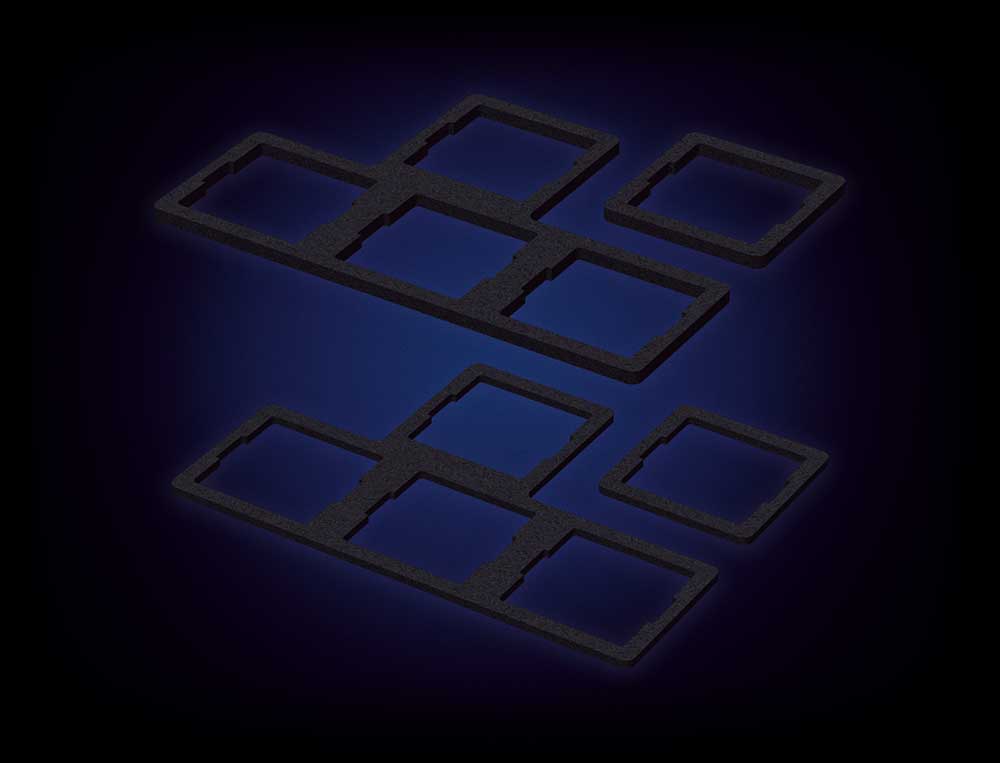

Key Spacer (Option Item)
2 or 3mm key spacer can be inserted under keycaps. Short keystroke allows rapid command execution. (Key spacer is option items)
![Full N-key Roll Over](images/img_fullnkey.png)

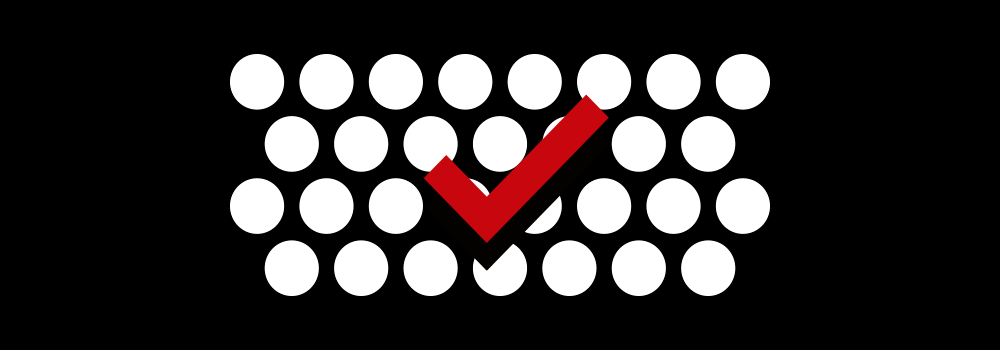

Full N-key Roll Over
No matter how fast you are, you’ll never miss. The Realforce RGB can keep up with any number of keystrokes and ensure you’re always in control.
![Cross-Stem Keycap Compatibility](images/img_keycapscomptible.jpg)

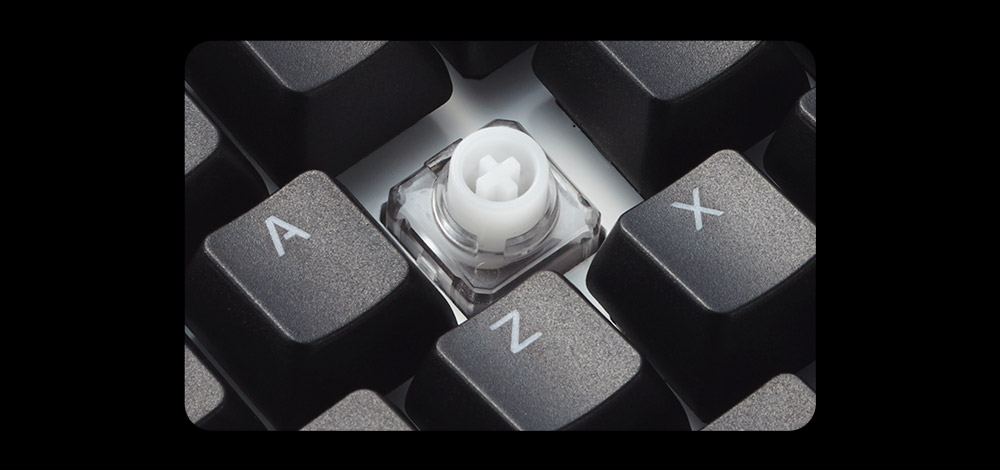

Cross-Stem Keycap Compatibility
Cross shape switch allows you to switch up your style with 3rd party accessory keycaps. (Additional keycaps not included)
![Step Sculpture](images/img_stepsculpture.jpg)

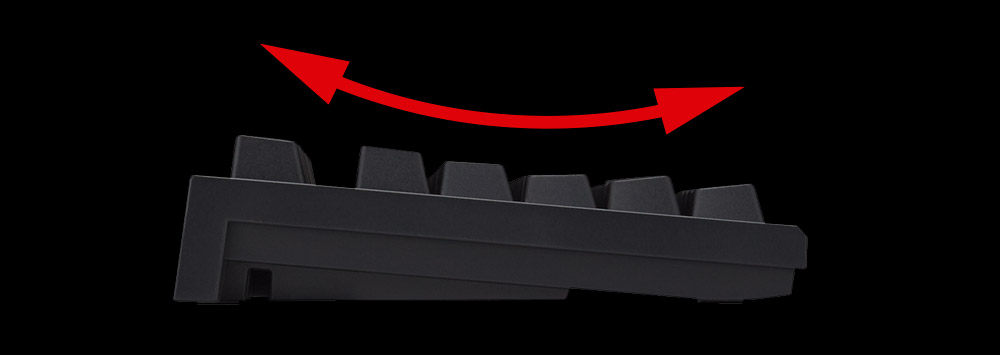

Ergonomic Form Factor
The step sculpture design allows for smooth movement across keys and comfortable typing over long play time.
![Force Diagram](images/img_forcediagram.png)

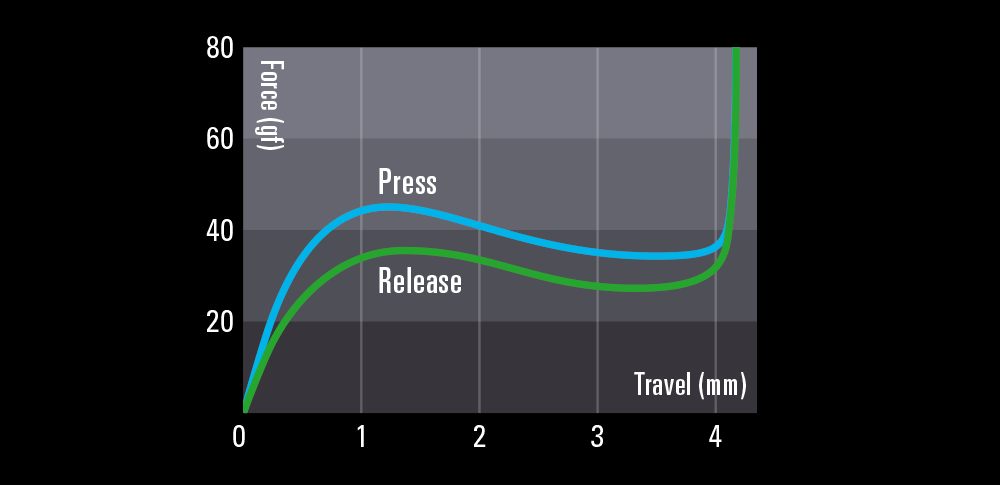

Force Diagram
45g Silky-Smooth keystroke.
![Key Life Time](images/img_keylifetime.jpg)

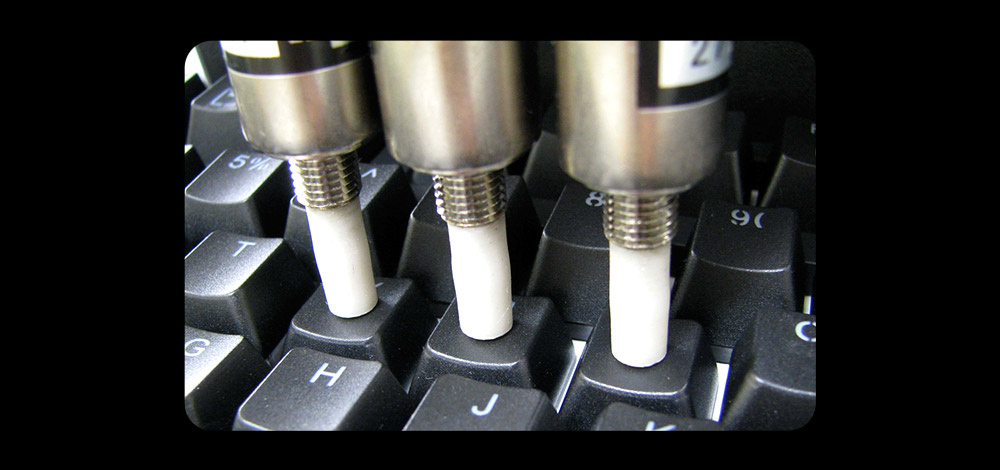

Key Life Time
Each Topre key switch is tested to clear 50 million keystrokes.
Made in Japan
Commitment to quality, durability, and technological sophistication.
Spec
Actuation Points | 3 points customizable, 1.5mm, 2.2mm, 3mm |
---|---|
LED Backlit | Yes, 16.8Million colors |
Keycaps | Double shot for No defaced characters |
Switch | Electrostatic capacitive & Non contact switch |
Key Life Time | 50 million times |
Weight | 1.4Kg |
Dimensions | 142mm x 455mm x 39mm |
Number of Keys | 108 layout (included 4 special keys) |
Cable Length | 1.5m / 5feet |
---|---|
Key Weight | 45g+/-15g |
Key Travel | 4mm |
Key Shapes | Step scultpture |
N-Key Rollover | Full N Key rollover |
Interface | USB |
Country of Origin | Made in Japan, Designed in Japan |
